Predictor Output for Line/Feature Verification System

The following screenshots and tables provide an explanation of the Predictor outputs to help you identify Switch Line Features.



Screenshots

Tables





Screenshots

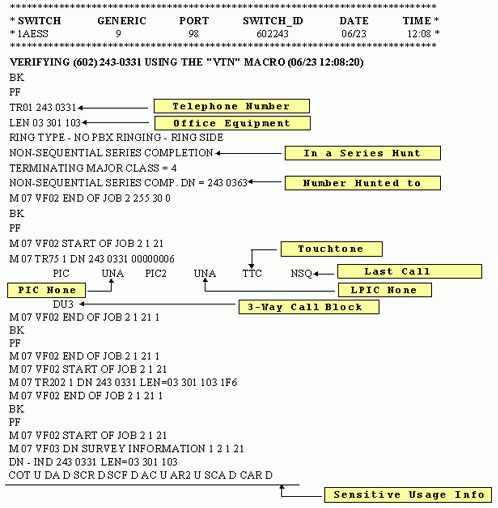

1AESS OFFICE- VTN Command







COT

Call Trace

DA

Priority Call

SCR

Call Rejection

SCF

Select Call Forward

AC

Last Call Returned

AR2

Continuous Redial

SCA

Selective Call Acceptance

The following code indicates whether the line has features:

D

Customer does not subscribe/Casual usage denied

S

Customer subscribes

U

Available for casual usage

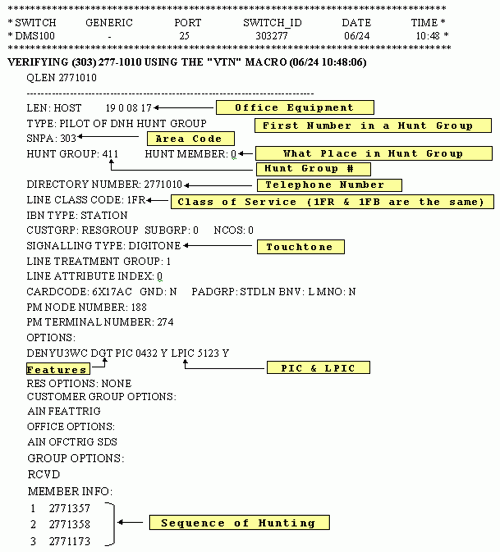

DMS100- VTN Command

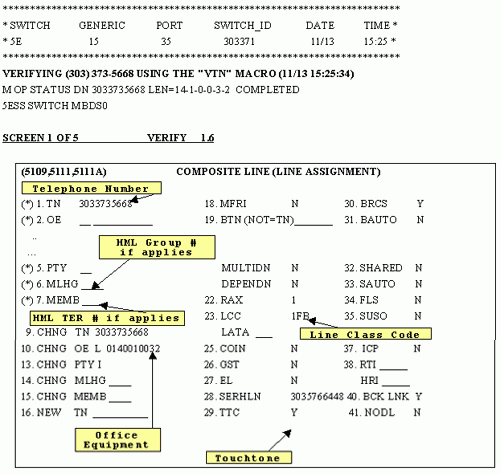

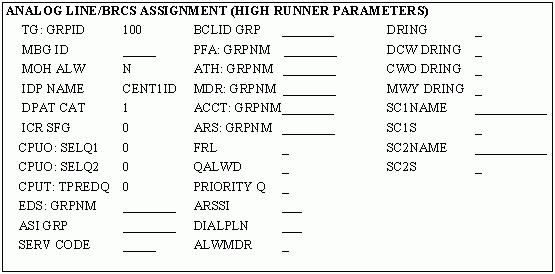

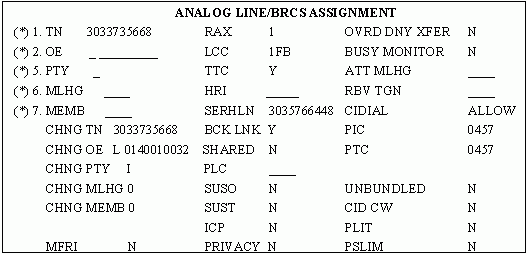

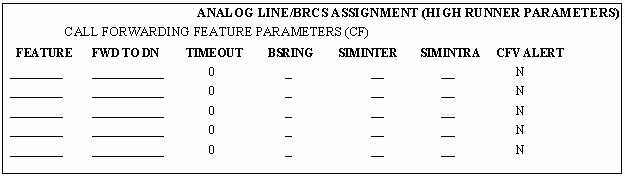

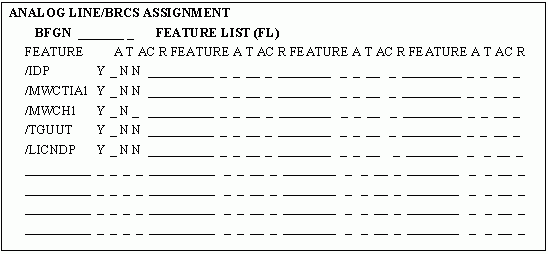

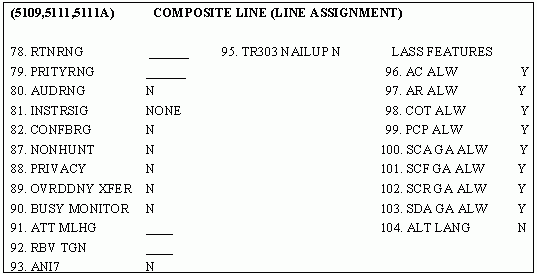

5ESS - VTN Command

When you perform the VTN command, you first get screens 1-5 and then screens 1-7. Use the labeled screens 1-7 (verify 1.8) for information.





5ESS SWITCH MBDS0

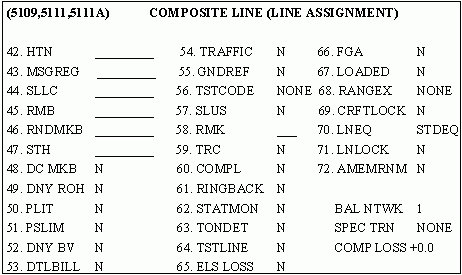

SCREEN 2 OF 5 VERIFY 1.6





5ESS SWITCH MBDS0

SCREEN 3 OF 5 VERIFY 1.6







5ESS SWITCH MBDS0

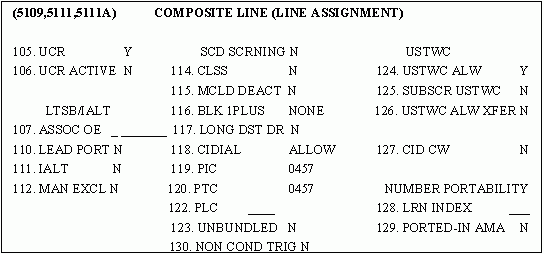

SCREEN 4 OF 5 VERIFY     1.6







5ESS SWITCH MBDS0

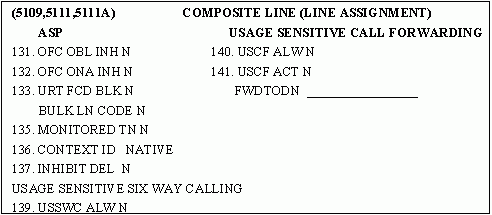

SCREEN 5 OF 5 VERIFY     1.6





5ESS SWITCH MBDS0

SCREEN 1 OF 7 VERIFY 1.8





5ESS SWITCH MBDS0

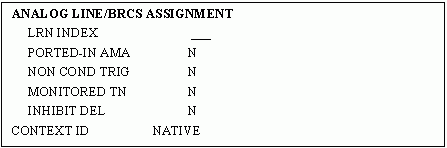

SCREEN 2 OF 7                             VERIFY     1.8





5ESS SWITCH MBDS0

SCREEN 3 OF 7 VERIFY 1.8





5ESS SWITCH MBDS0

SCREEN 4 OF 7 VERIFY 1.8





5ESS SWITCH MBDS0

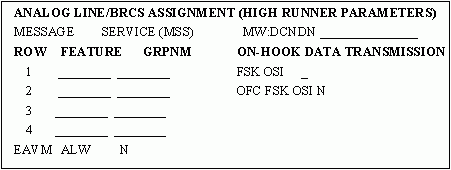

SCREEN 5 OF 7 VERIFY  1.8





5ESS SWITCH MBDS0

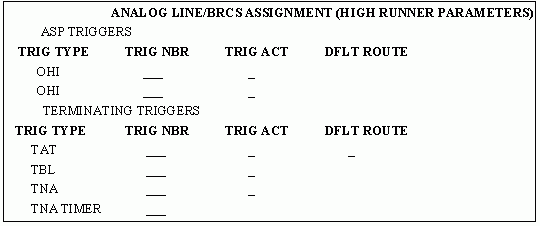

SCREEN 6 OF 7 VERIFY  1.8





5ESS SWITCH MBDS0

SCREEN 7 OF 7 VERIFY  1.8

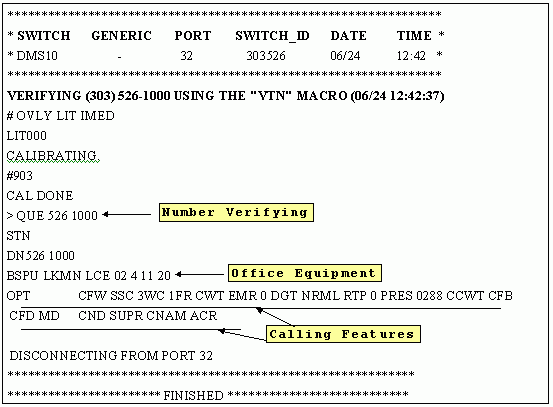

DMS10 - VTN Verify





CWT or CCWT

: Call waiting

CHD

: Call hold

ARC

: Anonymous call rejection

CFW

: Call forward variable

SPLR

: Home intercom

UTF

: Centrex 3-way conferencing

LSC

: 2-digit speed calling

CPUG,X or CPU

: Call pickup

SSC

: Speed call

UTF

: Call transfer

BTF

: Call forward busy

INT

: Intercom

AR 2

: Last call return

DAT

: Call forward don’t answer

UCB

: Continuous redial

SUPR

: Caller id number block

TEEN

: Custom ringing

CND,CNAM

: Caller id name and number

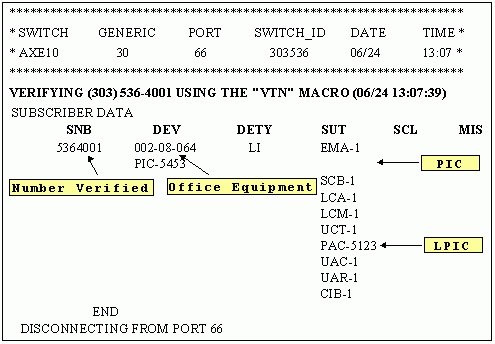

ERICKSSON VTN Command

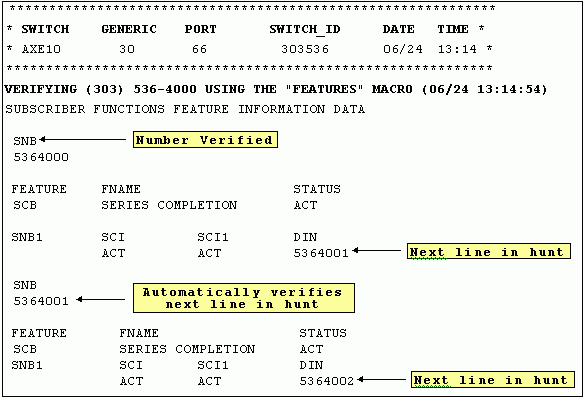

Feature Command

Use feature command to get feature information
