Unbundled Local Loop - Digital Signal Level 3 (DS3) Capable Loop - V29.0

History Log

Product Description

Unbundled Local Loop - Digital Signal Level 3 (DS3) Capable Loop is a transmission path between a CenturyLink™ Central Office (CO) DSX-3, or equivalent, and the loop demarcation point at the end-user premises. DS3 Capable Loop transports bi-directional DS3 signals with a nominal transmission rate of 44.736 megabits per second (Mbps). DS3 channel will typically be provided using a channel of a fiber based system.

Additional information on Unbundled Local Loops is located in Unbundled Local Loops – General Information.

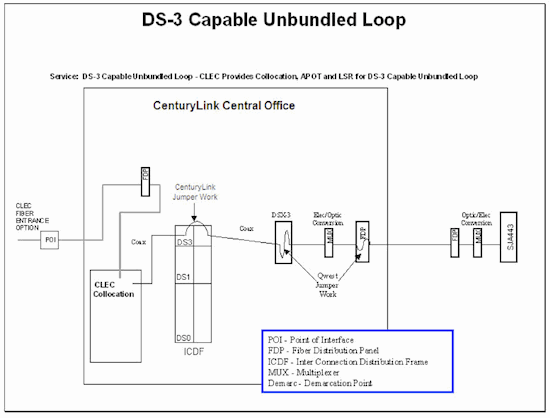

Product Diagram
diagram

Availability

DS3 Capable Loop is available where facilities exist throughout CenturyLink QC.

Non-Impaired Wire Centers and the Omaha Forbearance Wire Centers are described at CenturyLink Non-Impaired Wired Center Lists for Loops and Dedicated Transport . In those cases, the DS3 equivalent facility is available only via CenturyLink’s Special Access Tariffs.

Terms and Conditions

General Interconnection Agreement, regulation and policy information for DS3 Capable Loop are described in the Terms and Conditions section of Unbundled Local Loop - General Information.

A requesting telecommunication carrier may obtain a maximum of 1 (one) Unbundled DS3 Loop to any single building in which DS3 loops are available as Unbundled Loops.

CenturyLink is not obligated to provision DS3 capable Loops to End User Customers in areas served exclusively by Loop facilities or transmission equipment that are not compatible with the requested service.

Technical Publications

Technical characteristics, including Network Channel/Network Channel Interface (NC/NCI™) Codes, are specified in Technical Publication, Interconnection - Unbundled Loop, 77384 and technical details for DS3 Capable Loops are described in Technical Publication, CenturyLink DS3 Service, 77324.

Pricing

Rate Structure

Recurring charges are comprised of the following rate elements:

  • DS3 capable loop
  • Interconnection Tie Pair (ITP), per connection (a DS3 ITP for DS3)

Recurring charges are billed on a month-to-month basis.

Nonrecurring charges are billed at the time service is rendered. Nonrecurring charges depend on the Installation option chosen.  A nonrecurring charge applies to the installation of service(s) and in some states a disconnect service(s) charge will apply. CenturyLink is not obligated to provision DS3 capable Loops to End User Customers in areas served exclusively by Loop facilities or transmission equipment that are not compatible with the requested service.

Additional rate element information is available in the Pricing section of Unbundled Local Loop - General Information.

Rates

Rates are available in Exhibit A or the specific rate sheet in your Interconnection Agreement. If there are elements that are not in your Interconnection Agreement, contact your CenturyLink Service Manager.

Tariffs, Regulations and Policy

Tariff, regulations and policies are located in the state specific Tariffs/Catalogs/Price Lists.

Optional Features

There are no optional features available with DS3 Capable Loop.

Features/Benefits

Features Benefits

Market Presence

  • Allows you to provide Local Exchange services to your end-users.
  • Allows you to provide high bandwidth services to your end-users.

Low Cost

  • Allows you to lease facilities from CenturyLink at wholesale rates.

Applications

See Features/Benefits.

Implementation

Product Prerequisites

If you are a new Competitive Local Exchange Carrier (CLEC) and are ready to do business with CenturyLink, view Getting Started for Facility-Based CLECs. If you are an existing CLEC wishing to amend your Interconnection Agreement or your New Product Questionnaire, additional information is located in the Interconnection Agreement.

Pre-Ordering

General pre-ordering activities are described in the Pre-Ordering Overview. Requirements for pre-ordering are described in the Local Service Ordering Guidelines (LSOG)

Prior to ordering a DS3 UBL, CLECs must have a certification form on file.  That form certifies that the CLEC:

  • Is using the circuit for local traffic.
  • Is ordering a circuit in an impaired Wire Center as filed by CenturyLink QC.
  • Is ordering a circuit that does not exceed the cap in an impaired Wire Center as filed by CenturyLink QC.
  • Is not accessing an unbundled network element for the provision of mobile wireless services or interexchange services.

The Certification of Remand Order Criteria High Capacity Unbundled Transport, Unbundled Loop, and Combinations form is kept on file at CenturyLink subsequent to submission to the Account Team / Sales Executives and Service Managers.

Loop Qualification

The Interconnect Mediated Access (IMA) User's Guide specifically details the information applicable to preordering functions.

CenturyLink strongly recommends use of pre-ordering functionality to assist in achieving increased service request flowthrough and accuracy that will result in reduced order rejects.

The following activities may need to be performed by you in preparation for the issuance of the service request:

  • Validate address
  • Validate Connecting Facilities Assignment (CFA)
  • Review Customer Service Record (CSR)
  • Check facility availability
  • Query Fiber Data Reports

These activities will enable you to verify the type of facility and the loop make-up of the Unbundled Local Loop, which will assist you in identifying the appropriate service intervals, described in the Service Interval Guide (SIG).

More information can be found on these activities in the Loop Qualification and Raw Loop Data - CLEC Job Aid.

Additional pre-ordering information is located in the Pre-Ordering section of Unbundled Local Loop - General Information.

Requirements for pre-ordering are described in the Local Service Ordering Guidelines (LSOG)

Ordering

General ordering activities are described in the Ordering Overview.

Unbundled Local Loop Installations Options

Six installation options are available for Unbundled Local Loop. Detailed information about the different installation options is available in the Ordering section of Unbundled Local Loop - General Information.

Circuit ID (ECCKT)

DS3 Capable Loop are assigned with Circuit Identification numbers. Detailed information about the Circuit Identification number format is available in the Ordering section of Unbundled Local Loop - General Information.

Required Forms and Activity Types

DS3 Capable Loops orders are submitted using the following Local Service Ordering Guidelines (LSOG) forms:

  • Local Service Request (LSR)
  • End User (EU)
  • Loop Service (LS)
  • Directory Listing (DL), if applicable

Field entry requirements are described in the LSOG. Some UBL specific information, including valid LSR ACT types is described in the Ordering section of Unbundled Local Loop - General Information.

Orders are placed using IMA Extensible Markup Language (XML), IMA Graphical User Interface (GUI), or faxed to (888) 796-9089.

A Design Layout Report (DLR) request is described in the IMA XML Network Disclosure or the IMA User’s Guide.

Service requests can be rejected for various reasons. Error and rejection notifications are described in the Ordering Overview.

Service interval guidelines are located in the SIG.

Provisioning and Installation

General provisioning and installation activities are described in the Provisioning and Installation Overview and in the Provisioning section of Unbundled Local Loop - General Information.

Firm Order Confirmation (FOC) intervals are located in the SIG.

A jeopardy occurs on a service request if a condition exists that threatens timely completion. Jeopardy notifications are described in the Provisioning and Installation Overview.

Cooperative and Performance Testing shall conform to objective limits of American National Standards Institute (ANSI) T1.510 Standard.

Loss and Completion Reports are generated based on loss and gain account activity. Loss and Completion Reports are described in Billing Information – Additional Outputs – SMDR, Completion Report, Loss Report.

Installation hours are 8:00 a.m. to 5:00 p.m., Monday through Friday. Installations requested outside of the normal operating hours are considered to be Out of Hours Installations.

Hours of Operation

Installation hours are described in the Provisioning and Installation section of Unbundled Local Loop - General Information.

Maintenance and Repair

General maintenance and repair activities are described in the Maintenance and Repair Overview.

Billing

Customer Records and Information System (CRIS) billing is described in Billing Information - Customer Records and Information System (CRIS).

Training

View CenturyLink courses by clicking on Course Catalog.

Contacts

CenturyLink contact information is located in Wholesale Customer Contacts.

Frequently Asked Questions (FAQs)

This section is being compiled based on your feedback.

Last Update: March 13, 2014

NC/NCI™ is a Trademark of Telcordia Technologies, Inc.
