How to configure LAN subnets on your modem

Your broadband router can support multiple LAN subnet settings. Please visit the DHCP settings page to see how to configure the default IPv4 subnet.

NOTE:  Depending on your modem, your settings interface may appear slightly different from the images below.

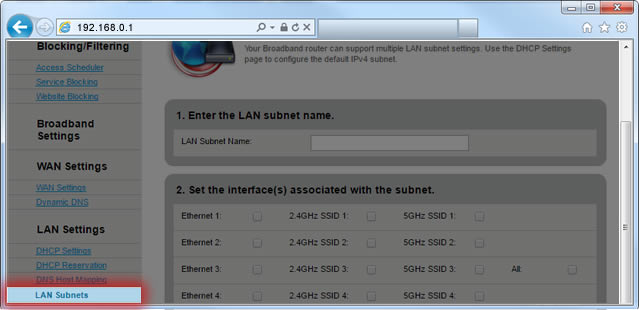

5. Select "LAN Subnets" in the left sidebar.

LAN Subnets Step 5

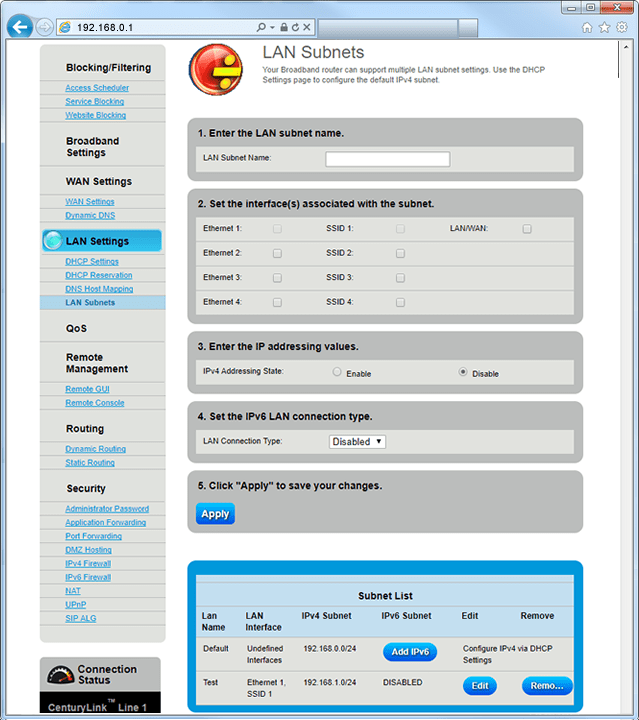

6. Follow the steps to edit the LAN Subnets settings.

  • Step 1:  Enter the LAN Subnet Name.

  • Step 2:  Set the interface(s) associated with the subnet (Ethernet; SSID; LAN/WAN).

  • Step 3:  Enable/Disable the IPv4 Addressing State.

  • Step 4:  Set the IPv6 LAN Connection Type. You can also edit or remove items from the Subnet List at the bottom.

  • Step 5:  When you're finished adding or removing items, click "Apply" to save your changes.
LAN Subnets Step 6
