Configure the 802.1x wireless settings on your modem
The 802.1x settings section of your modem's Wireless Setup menu allows you to combine wireless security methods with the benefits of a radius server. This setting applies to 2.4 GHz frequency wireless networks only.
Note: Your modem settings may appear slightly different from the images below, but the steps will be the same.
1. Connect a device to your network over WiFi or using an Ethernet cable connected to your modem. This works best on a tablet or computer.
2. Open a web browser and type http://192.168.0.1 into the web address field.
3. Sign in to the modem settings (GUI) using your Admin Username and Admin Password, printed on the sticker.
You can find the Admin Username and Password printed on the sticker attached to the side, back or bottom of the modem.
CAUTION!Do not remove your modem sticker. It includes your default Admin Username and Admin Password, which cannot be retrieved if lost. Your modem could become unusable without them.
4. Select Wireless Setup in the main menu.
5. Select 2.4 GHz in the left sidebar.

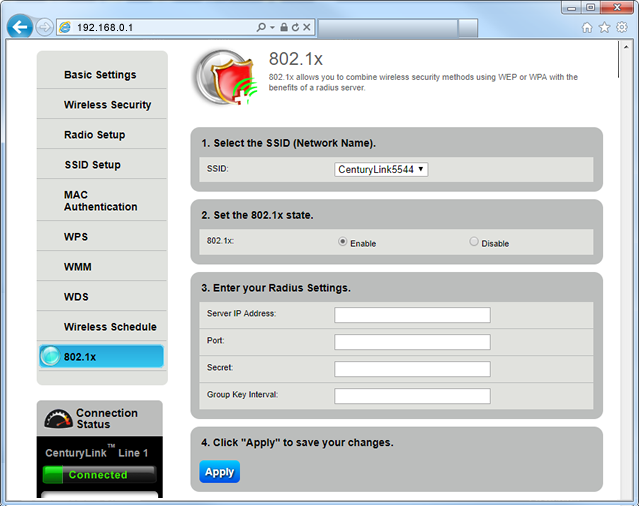

6. Select 802.1x in the menu on the left sidebar. From here you can view and edit the settings for your WiFi network (SSID).
